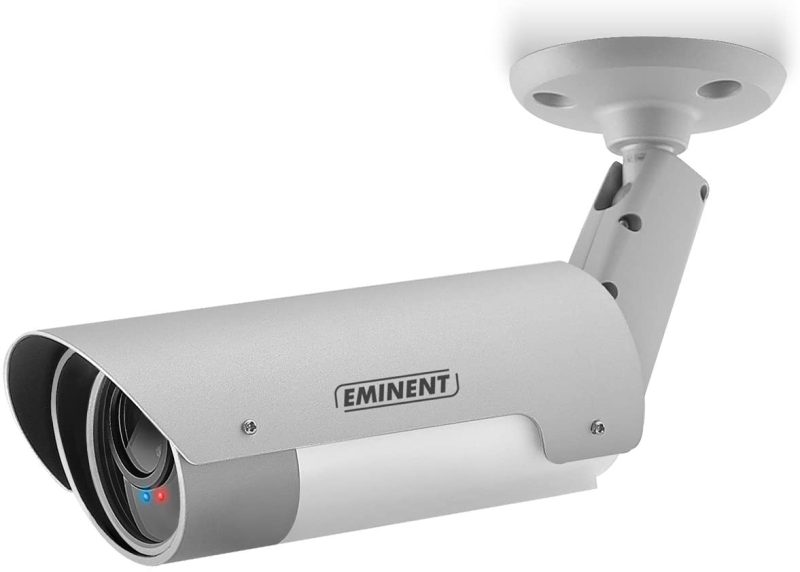

EM6260 – TELECAMERA IP DA ESTERNO Easy
Dimensions in mm. (WxHxD): 58x52x230
Weight in grams: 368
Power: DC 20V, 0.6A
Network interface: Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45
Wireless interface: IEEE 802.11b/g/n max 150 Mbps
Image sensor: RGB HD megapixel 1/4 inch CMOS sensor
Day and night seperate sensors
Automatic exposure control
Automatic white balance,
Automatic gain control
Automatic brightness control.
Light sensitivity: 0.2 Lux ( IR LED off )
0 Lux (with 10 meters IR LED on)
Automatically turn on the IR LED on low light environment.
IR LED 1 to 3 high power IR LED, Software adjustable.
Lenses: 4.2 mm, F2.4, viewing angle: 62°, fixed iris.
Focus range: 30 cm to infinity
Day and night separate lenses
Buttons: One reset button, to factory default settings
One WPS button for automatic WiFi setup
Indicators: One LED for Internet connection status indication
One LED for Ethernet connection indication
One LED for SD card recording indication
Video compression: H.264, baseline profile level 3.1
Video streaming: Separate frame rate/resolution/bandwidth settings for PC and mobile.
Video resolution: HD for PC: 1280×800, HD for Android & iOS 1024×768, VGA(640×480), QVGA(320×240), QQVGA(160×120)
Bandwidth : 64k, 128k, 256k, 512k, 768k, 1M, 1.2M, 1.5 2 Mbps
Frame rate : 1~5, 10, 15, 20, 25, 30 fps
Audio: Built-in microphone for audio monitoring
Audio compression: G.711
Security: Web management username/password protection
WiFi WEP and WPA/WPA2 security mode
Installation, management and maintenance: Plug & play by ID/password.
Web browsing: Built-in web server for standard web browser access
Video display on Internet Explorer browser
Video snapshot on any browser
Supported protocols: IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP, ARP, DNS, PPPoE.
Video management software: Surveillance software for viewing and archiving up to 36 cameras
Users: Up to 20 simultaneous unicast users (depends on video settings)
Alarm and event management: Events triggered by motion and sound detection
Email/ftp alarm message: Push notification on iPhone/iPad and Android devices.
Micro-SD Card reader: Supports up to 32GB Micro-SD Card
IP66 rated housing
Operating conditions: -30 – 50 °C
Power usage: approx. 4-5W
